Air Flow over a Three Element Airfoil and Main Airfoil

Simulation of air flow over the three-element airfoil using Ansys Fluent. Estimation of lift and drag forces for this configuration was done. Compare these values with those from the case without slats or flaps. The angle of attack (AoA) is 4 degrees and the freestream Mach number is 0.19.

01

Geometry and Meshing


02

Boundary Conditions

A steady state simulation was done using gas with constant density as fluid. The flow type was set to be segregated Turbulent flow. K- Omega Turbulent model was used.

Inlet Velocity was set to 65m/s

AOA- 4 Degrees

​


03

velocity plot.png

Results

Three- Element Case-

Lift Coefficient : 2.05 N

Drag Coefficient: 0.041 N

Main Case-

Lift Coefficient : 2.05 N

Drag Coefficient: 0.041 N

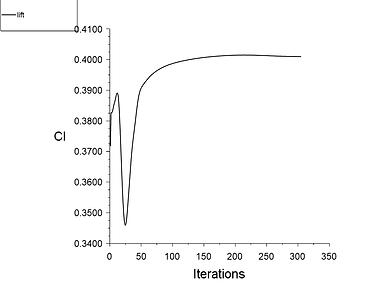

Coefficient of Lift Plot-

lift plot.png
lift plot.png

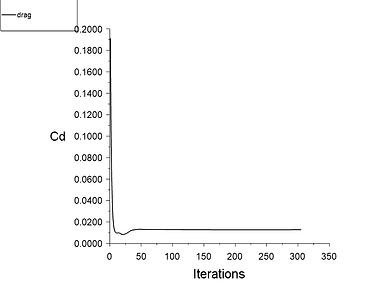

Coefficient of Drag Plot-

drag plot.png
drag plot.png

Coefficient of Pressure Plot-


Simulation Report Three Element Case-

Simulation Report Main Case Case-
